Fiber Parameter
No. | Items | Unit | Specification | |
G.652D | ||||
1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 |
1550nm | μm | 10.4±0.5 | ||
2 | Cladding Diameter | μm | 124.8±0.7 | |
3 | Cladding Non-Circularity | % | ≤0.7 | |
4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
5 | Coating Diameter | μm | 245±5 | |
6 | Coating Non-Circularity | % | ≤6.0 | |
7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
9 | Attenuation(max.) | 1310nm | dB/km | ≤0.4 |
1550nm | dB/km | ≤0.3 | ||

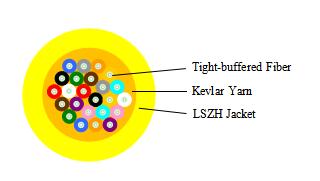

Cable Parameters
Items | Specifications | ||
Fiber Count | 12 | ||
Tight-buffered Fiber | Dimension | 850±50μm | |
Material | PVC | ||
Color | 1.Blue、Orange、Green、Brown、Grey、White、Red、Black、Yellow、Purple、 Pink、Aqua 2. Blue、Orange、Green、Brown、Grey、White、Red、Black、Yellow、Purple、 Pink、Aqua(black mark) | ||
Strength Member | Kevlar | ||
Outer Jacket | Dimension | 8.2.0±0.2mm | |
Material | LSH | ||
Color | Yellow | ||
Mechanical and Environmental Characteristics
Items | Unite | Specifications |
Tension（Long Term） | N | 500 |
Tension（Short Term） | N | 1000 |
Crush（Long Term） | N/10cm | 300 |
Crush（Short Term） | N/10cm | 1000 |
Min. Bend Radius（Dynamic） | mm | 20D |
Min. Bend Radius（Static） | mm | 10D |
Installation Temperature | ℃ | -20～+60 |
Operating Temperature | ℃ | -40～+60 |
Storage Temperature | ℃ | -40～+60 |
